VD5 Feed dispenser

The VD5 feed dispenser is made of plastic and can contain up to 10 l feed. The construction of VD5 feed dispenser is very simple - free of fragile mechanics and demanding minimal maintenance. It is simply clicked onto the feed pipe and locked in place using two clips without the need for tools.

  • For Ø38, Ø50, Ø55, Ø60 and Ø75 mm systems
  • With removable outlet hopper
  • Well suited for meal and pellets
  • Volume 10 litres
  • Fits downpipes Ø75 mm
  • Simple and easy adjustment
  • Direct access to feed dispenser through lid
  • Easy and quick mounting
  • Easy to clean
  • No bridging


The dispenser has a freely rotatable asymmetrical funnel, facilitating optimum downpipe positioning and preventing bridge formation in the outlet.

In addition, the funnel outlet issuitable for Ø75 mm downpipes.

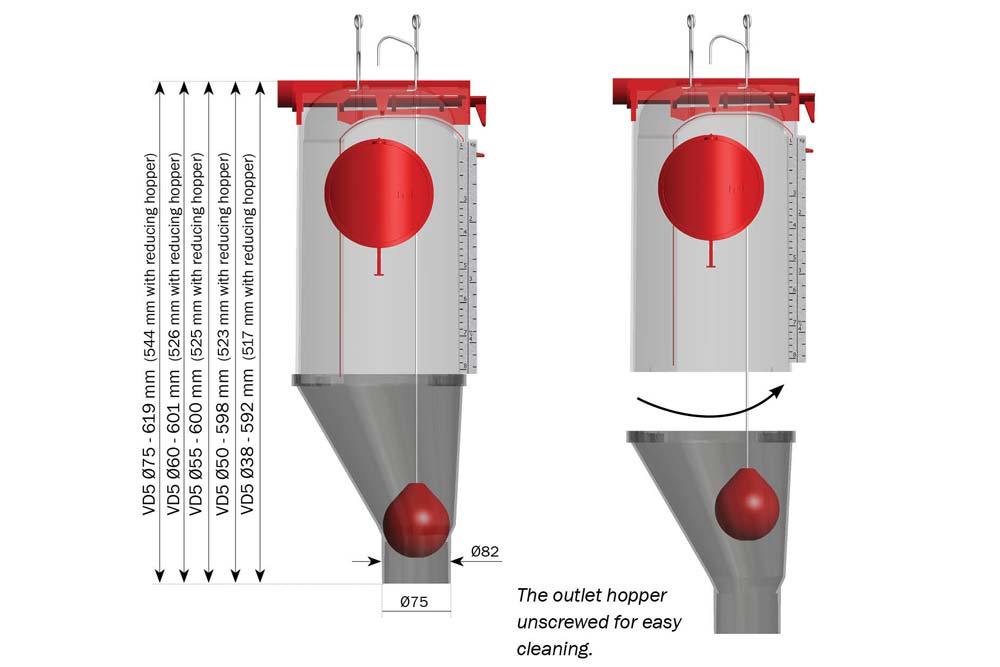

The inside of the dispenser is easily cleaned through the large cleaning hatch or through the removable outlet hopper.

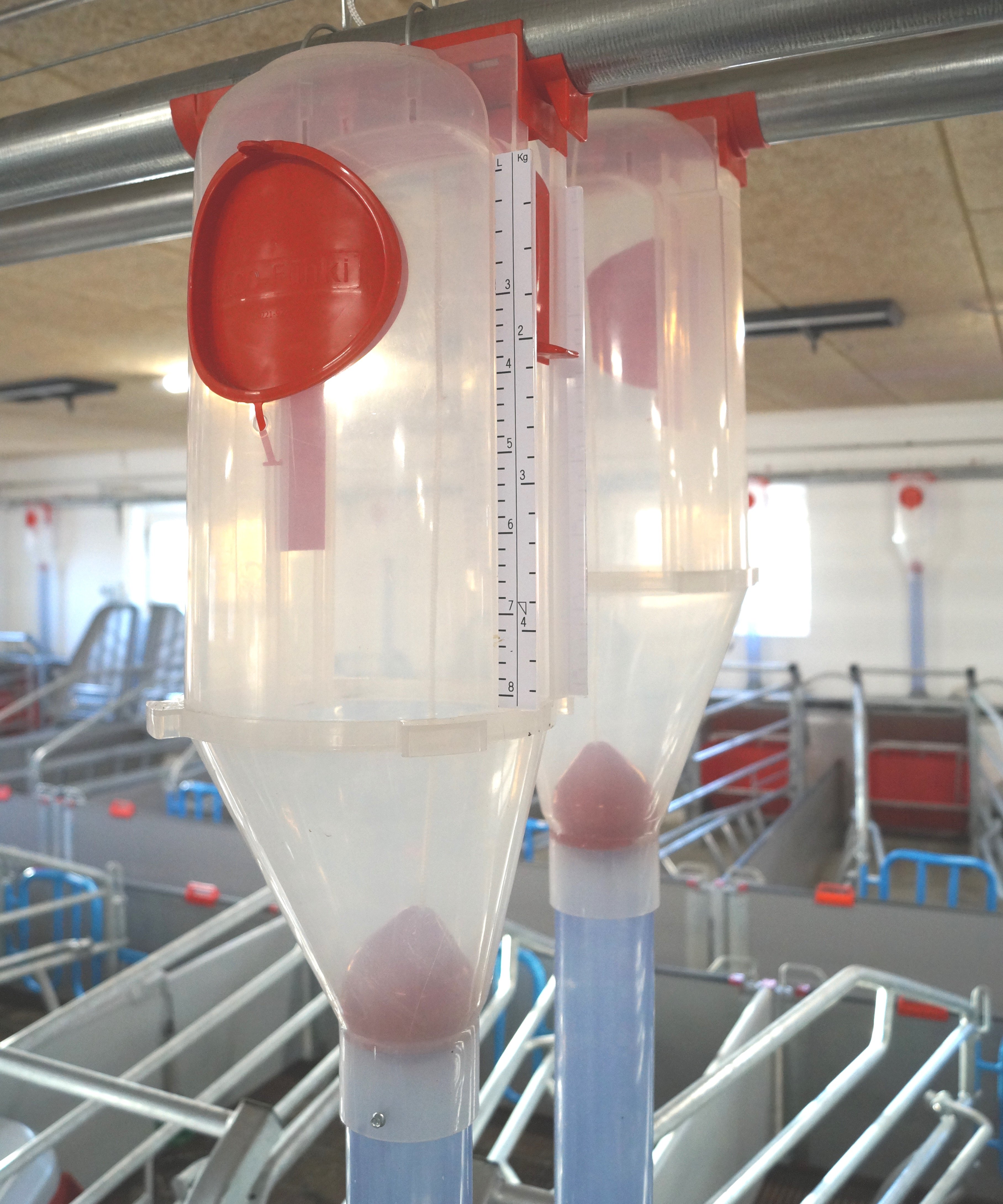

Thanks to its transparent hopper and clear scale, checking the current setting of the VD5 is extremely simple, providing a rapid overview of feeding status within the unit.

The volume setting can be quickly and easily adjusted by means of a adjustable band which pushed up and down.



VD5 is suitable for both manual and automatic feeding systems.

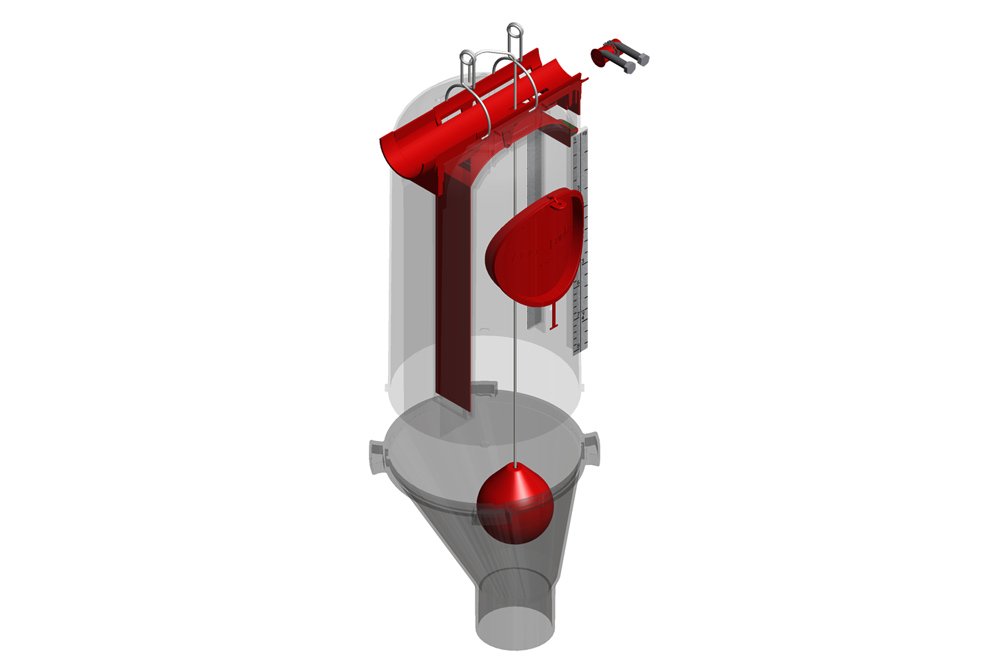

A ball at the bottom of the outlet hopper keeps the VD5 dispenser closed, and the feed is nicely and easily delivered when the ball is pulled upwards, without risk of bridging.

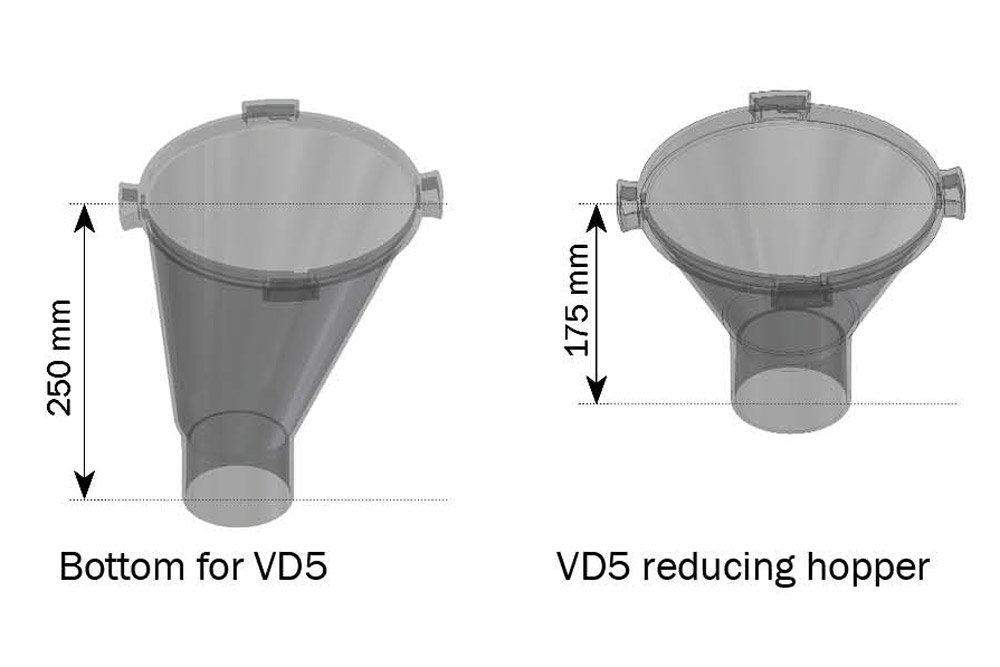

It is also possible to reduce feed by 0,45 l with VD5 reducing hopper - see the picture below on the right.
