Wash robot
Efficient wash robot for pig houses
ProCleaner X100 is a powerful, flexible and reliable wash robot for cleaning the vast majority of types of pig house. The machine is simple in its construction but houses an effective, high-tech wash robot that is able to cope with even the biggest jobs.
- Service-friendly
ProCleaner X100 is designed to be particularly servicefriendly, and everything on the machine is easily accessible. - Efficient
ProCleaner X100 is a powerful wash robot with enough power for even the largest pig houses. In addition, it is extremely reliable.
- User-adapted
If you have a variety of different pig houses or varying needs, ProCleaner X100 can be set and programmed according to your needs.
- Wash time for 30 metres of pig house, 5 mtr. pen depth on both sides= 3-4 hours (it requires water volume of at least 30 l per minute).
- ProCleaner X100 can be programmed to run both a soaking programme and several different types of wash.
- The wash robot is built on 4 wheels and is 69 cm wide and 115 cm in length.
- ProCleaner X100 can be moved sideways by an adjustable side wheel that runs up the side of the fixtures and makes sure it keeps going in the right direction.
- The machine has an ultrasound sensor which ensures that the machine stops when it comes to a wall.
- The machine is connected via the existing high-pressure system by means of standard high-pressure hoses and requires a water volume of at least 25 litres per minute.

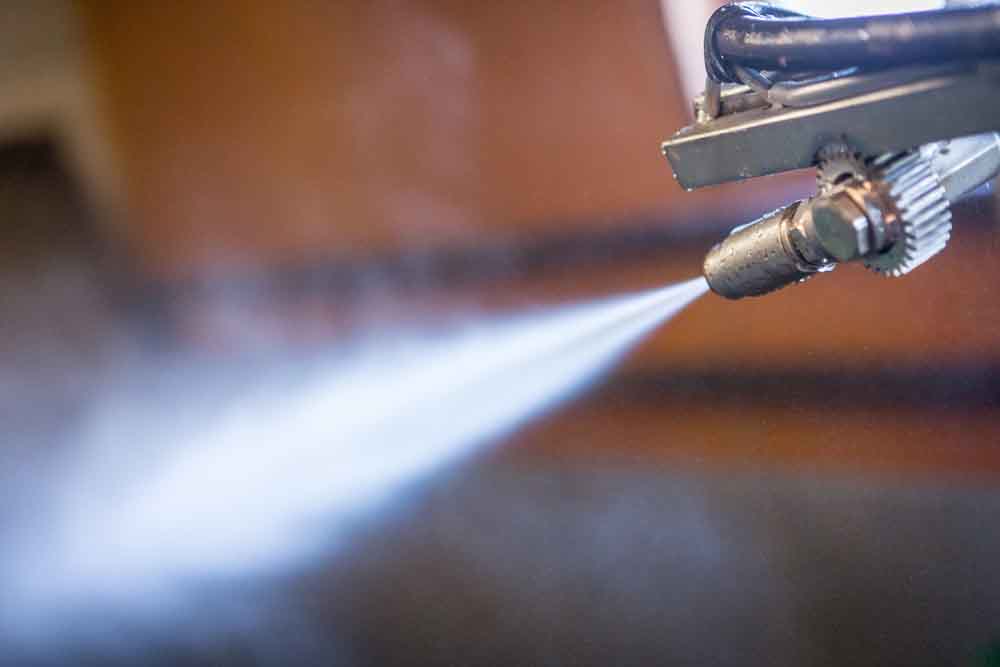

- Powerful nozzles
- Electronic controls
- Multi-function power point
- Specially developed hose reel
- Mobile and easy to store
Technical specifications | |
|---|---|
Product name | ProCleaner X100 |
Dimensions (LxBxH) cm | 115 × 69* x 145 |
Weight | 285 kg |
Power supply | 230 V |
Required amperage | 6 amp |
Water consumption | min. 20 / max. 40 liter per minute |
Maximum water pressure | 200 bar |
Operating pressure | 140 bar (40 ltr. water/minute) |
Compressor | External |
*) Without side wheel.
